F22

₹8,999.00

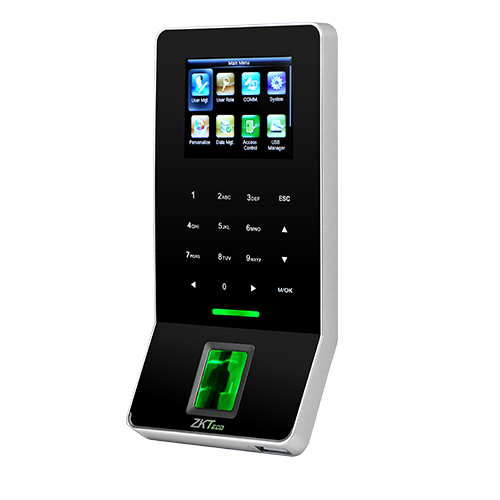

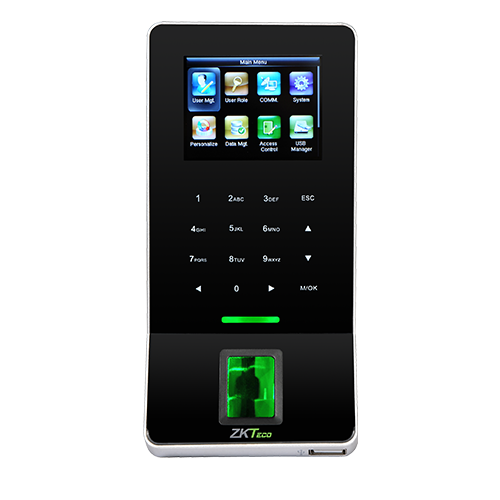

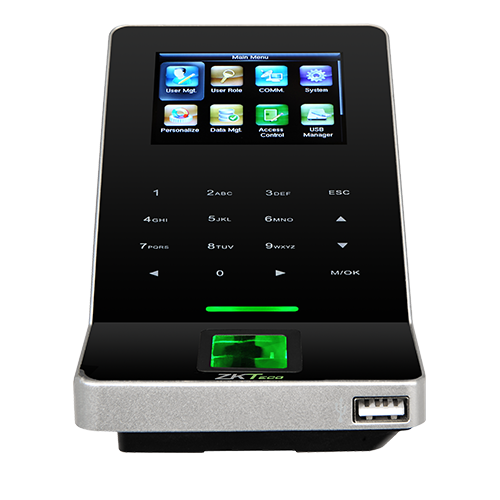

F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high-image quality infrared detection fingerprint sensor.
F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.

Category:

Description

Display2.4-inch TFT LCD Color Screen
Fingerprint Capacity3,000
Card Capacity5000(Optional) ID or IC card
Transaction Capacity30,000
SensorBioID Sensor/ SilkID Sensor (optional)
Algorithm VersionZKFinger VX10.0
CommunicationRS232/485, TCP/IP, USB-host,Wi-Fi

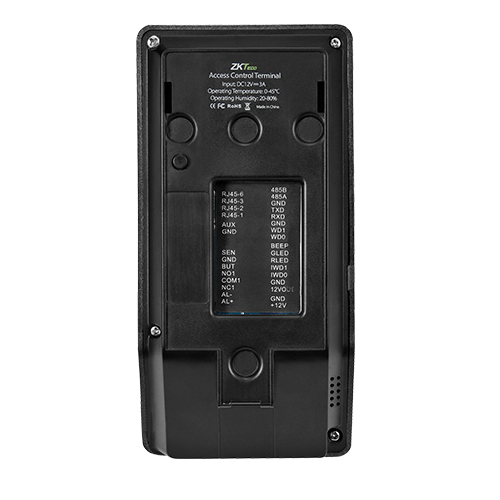

Access Control Interface3rd Party Electric Lock, Door Sensor,

Exit Button, Alarm

Wiegand SignalInput, Output
Aux. Input1ea for linkage function
FunctionsDST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional)
Power Supply12V DC,3A
Operating Temperature0 ℃– 45℃
Operating Humidity20%-80%
Dimension(LxWxH)158.5×78.0x19.4mm
SDK and softwarePUSH AC SDK, ZKBio Access
